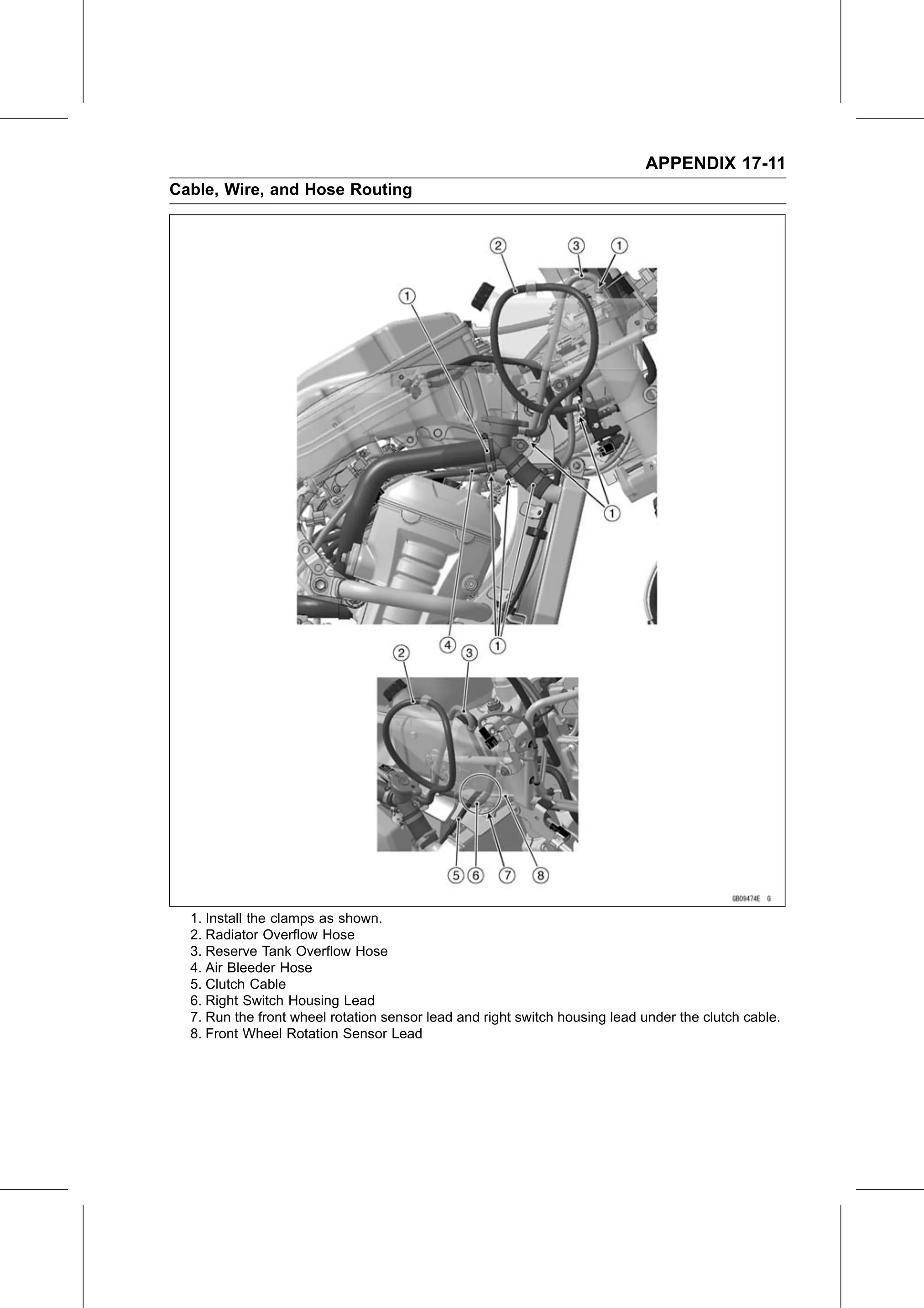

APPENDIX 17-11
Cable, Wire, and Hose Routing

  1. Install the clamps as shown.
  2. Radiator Overflow Hose
  3. Reserve Tank Overflow Hose
  4. Air Bleeder Hose
  5. Clutch Cable
  6. Right Switch Housing Lead
  7. Run the front wheel rotation sensor lead and right switch housing lead under the clutch cable.
  8. Front Wheel Rotation Sensor Lead
