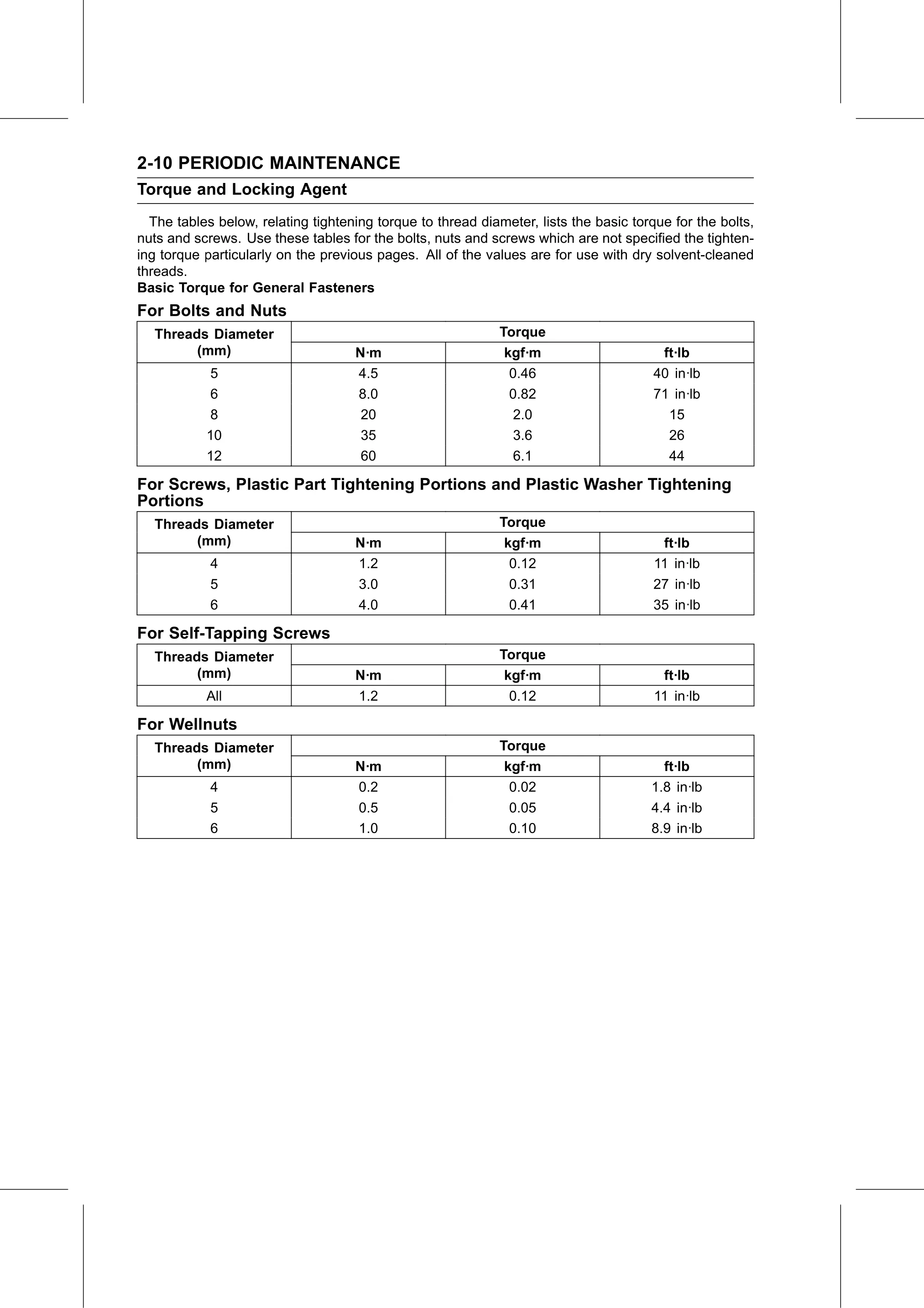

2-10 PERIODIC MAINTENANCE
Torque and Locking Agent
  The tables below, relating tightening torque to thread diameter, lists the basic torque for the bolts,
nuts and screws. Use these tables for the bolts, nuts and screws which are not specified the tighten-
ing torque particularly on the previous pages. All of the values are for use with dry solvent-cleaned
threads.
Basic Torque for General Fasteners
For Bolts and Nuts
  Threads Diameter                                           Torque
        (mm)                        N·m                       kgf·m                     ft·lb
            5                       4.5                        0.46                    40 in·lb
            6                       8.0                        0.82                    71 in·lb
            8                        20                         2.0                      15
           10                        35                         3.6                      26
           12                        60                         6.1                      44

For Screws, Plastic Part Tightening Portions and Plastic Washer Tightening
Portions
  Threads Diameter                                           Torque
        (mm)                        N·m                       kgf·m                     ft·lb
            4                       1.2                        0.12                    11 in·lb
            5                       3.0                        0.31                    27 in·lb
            6                       4.0                        0.41                    35 in·lb

For Self-Tapping Screws
  Threads Diameter                                           Torque
        (mm)                        N·m                       kgf·m                     ft·lb
           All                      1.2                        0.12                    11 in·lb

For Wellnuts
  Threads Diameter                                           Torque
        (mm)                        N·m                       kgf·m                     ft·lb
            4                       0.2                        0.02                   1.8 in·lb
            5                       0.5                        0.05                   4.4 in·lb
            6                       1.0                        0.10                   8.9 in·lb
