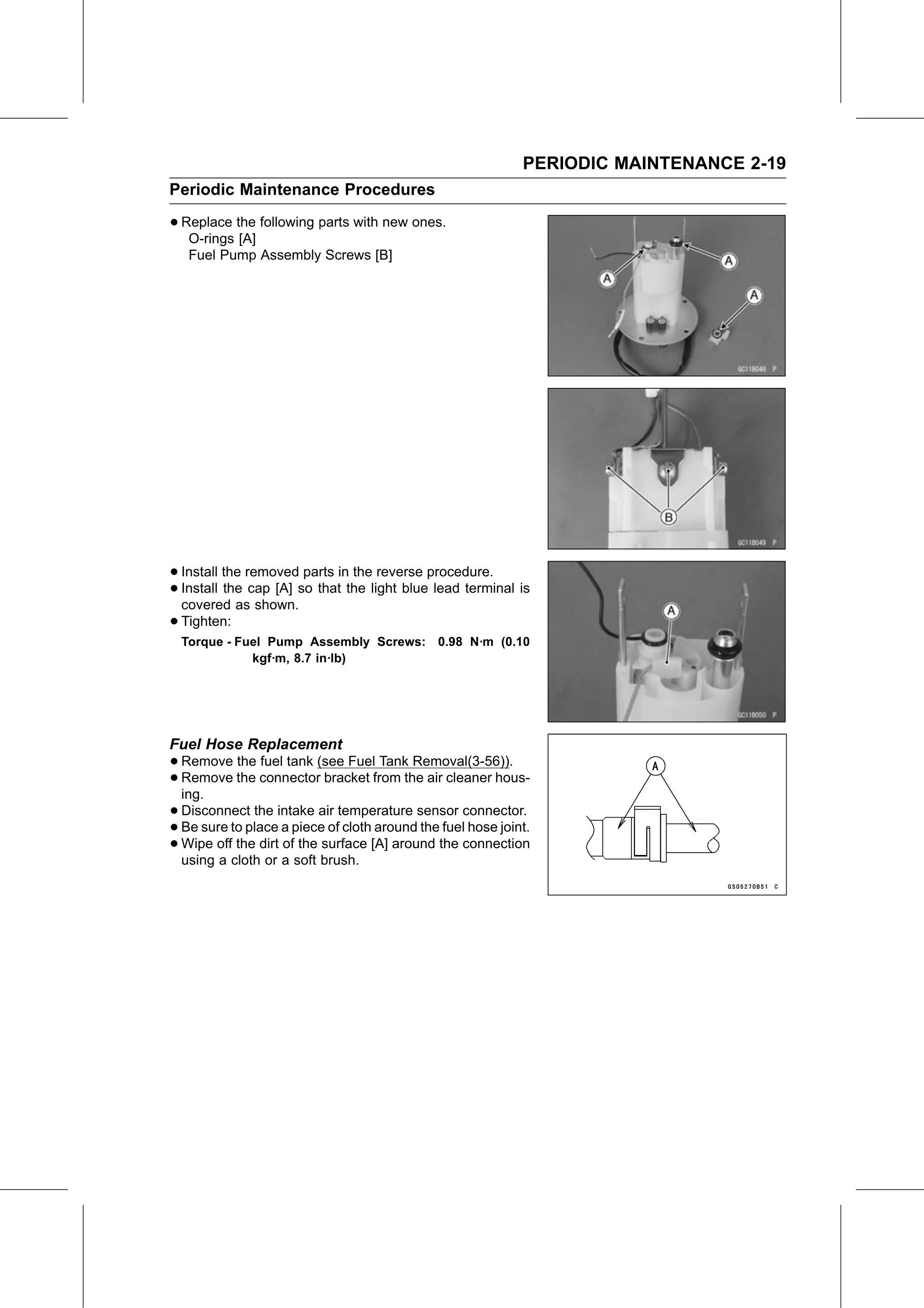

PERIODIC MAINTENANCE 2-19
Periodic Maintenance Procedures

• Replace the following parts with new ones.
   O-rings [A]
   Fuel Pump Assembly Screws [B]

• Install the removed parts in the reverse procedure.
• coveredtheascap
  Install          [A] so that the light blue lead terminal is
                shown.
• Tighten:
  Torque - Fuel Pump Assembly Screws: 0.98 N·m (0.10
             kgf·m, 8.7 in·lb)

Fuel Hose Replacement
• Remove      the fuel tank (see Fuel Tank Removal(3-56)).
• ing.
  Remove      the connector bracket from the air cleaner hous-

• Disconnect     the intake air temperature sensor connector.
• Be sure to place a piece of cloth around the fuel hose joint.
• using offa cloth
  Wipe        the dirt of the surface [A] around the connection
                   or a soft brush.
