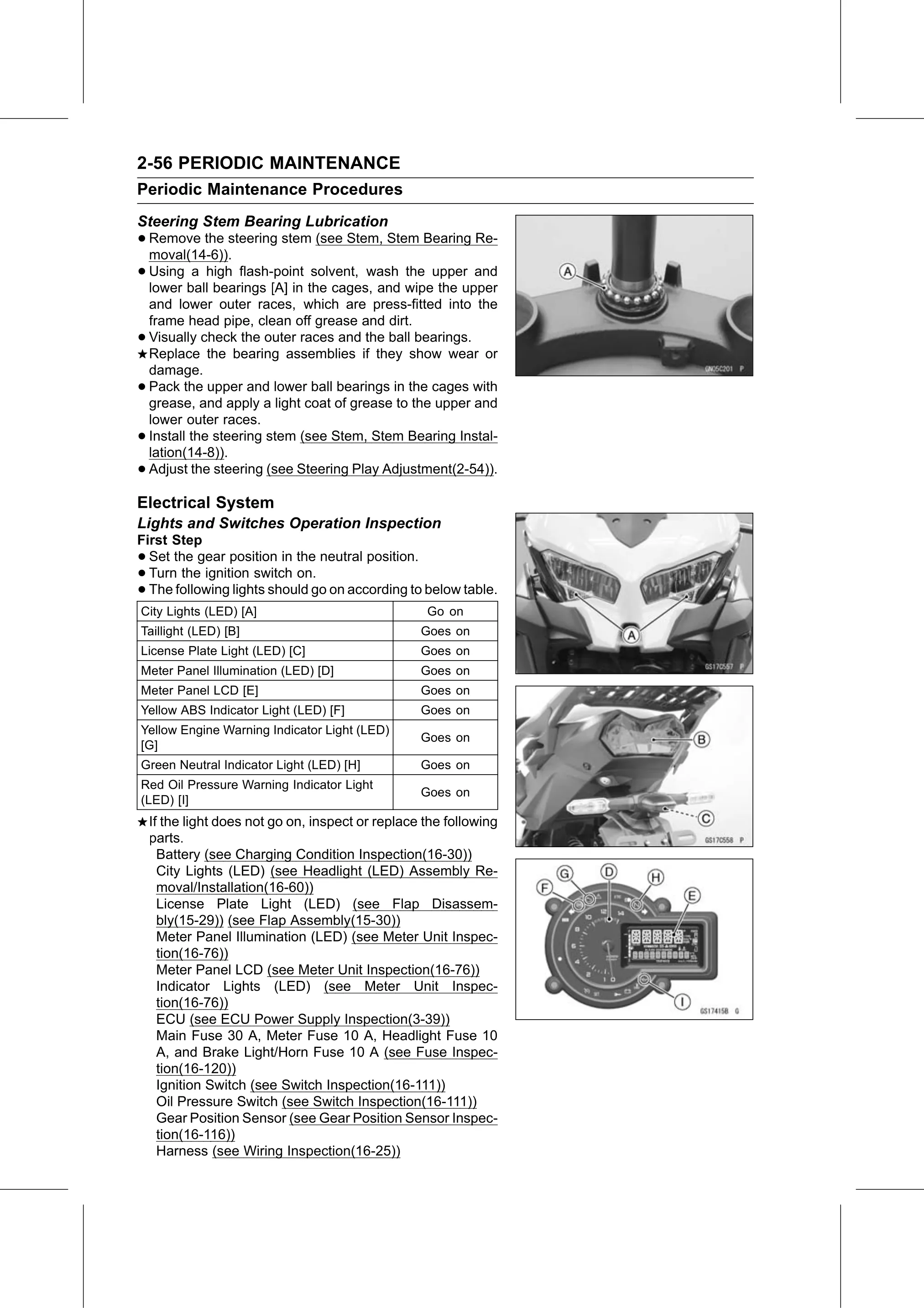

2-56 PERIODIC MAINTENANCE
Periodic Maintenance Procedures
Steering Stem Bearing Lubrication
• Remove   the steering stem (see Stem, Stem Bearing Re-
  moval(14-6)).
• Using  a high flash-point solvent, wash the upper and
  lower ball bearings [A] in the cages, and wipe the upper
    and lower outer races, which are press-fitted into the
    frame head pipe, clean off grease and dirt.
•   Visually check the outer races and the ball bearings.
    Replace the bearing assemblies if they show wear or
    damage.
•   Pack the upper and lower ball bearings in the cages with
    grease, and apply a light coat of grease to the upper and
    lower outer races.
•   Install the steering stem (see Stem, Stem Bearing Instal-
    lation(14-8)).
•   Adjust the steering (see Steering Play Adjustment(2-54)).

Electrical System
Lights and Switches Operation Inspection
First Step
• Set the gear position in the neutral position.
• Turn the ignition switch on.
• The following lights should go on according to below table.
City Lights (LED) [A]                               Go on
Taillight (LED) [B]                                Goes on
License Plate Light (LED) [C]                      Goes on
Meter Panel Illumination (LED) [D]                 Goes on
Meter Panel LCD [E]                                Goes on
Yellow ABS Indicator Light (LED) [F]               Goes on
Yellow Engine Warning Indicator Light (LED)
                                                   Goes on
[G]
Green Neutral Indicator Light (LED) [H]            Goes on
Red Oil Pressure Warning Indicator Light
                                                   Goes on
(LED) [I]
    If the light does not go on, inspect or replace the following
    parts.
      Battery (see Charging Condition Inspection(16-30))
      City Lights (LED) (see Headlight (LED) Assembly Re-
      moval/Installation(16-60))
      License Plate Light (LED) (see Flap Disassem-
      bly(15-29)) (see Flap Assembly(15-30))
      Meter Panel Illumination (LED) (see Meter Unit Inspec-
      tion(16-76))
      Meter Panel LCD (see Meter Unit Inspection(16-76))
      Indicator Lights (LED) (see Meter Unit Inspec-
      tion(16-76))
      ECU (see ECU Power Supply Inspection(3-39))
      Main Fuse 30 A, Meter Fuse 10 A, Headlight Fuse 10
      A, and Brake Light/Horn Fuse 10 A (see Fuse Inspec-
      tion(16-120))
      Ignition Switch (see Switch Inspection(16-111))
      Oil Pressure Switch (see Switch Inspection(16-111))
      Gear Position Sensor (see Gear Position Sensor Inspec-
      tion(16-116))
      Harness (see Wiring Inspection(16-25))
