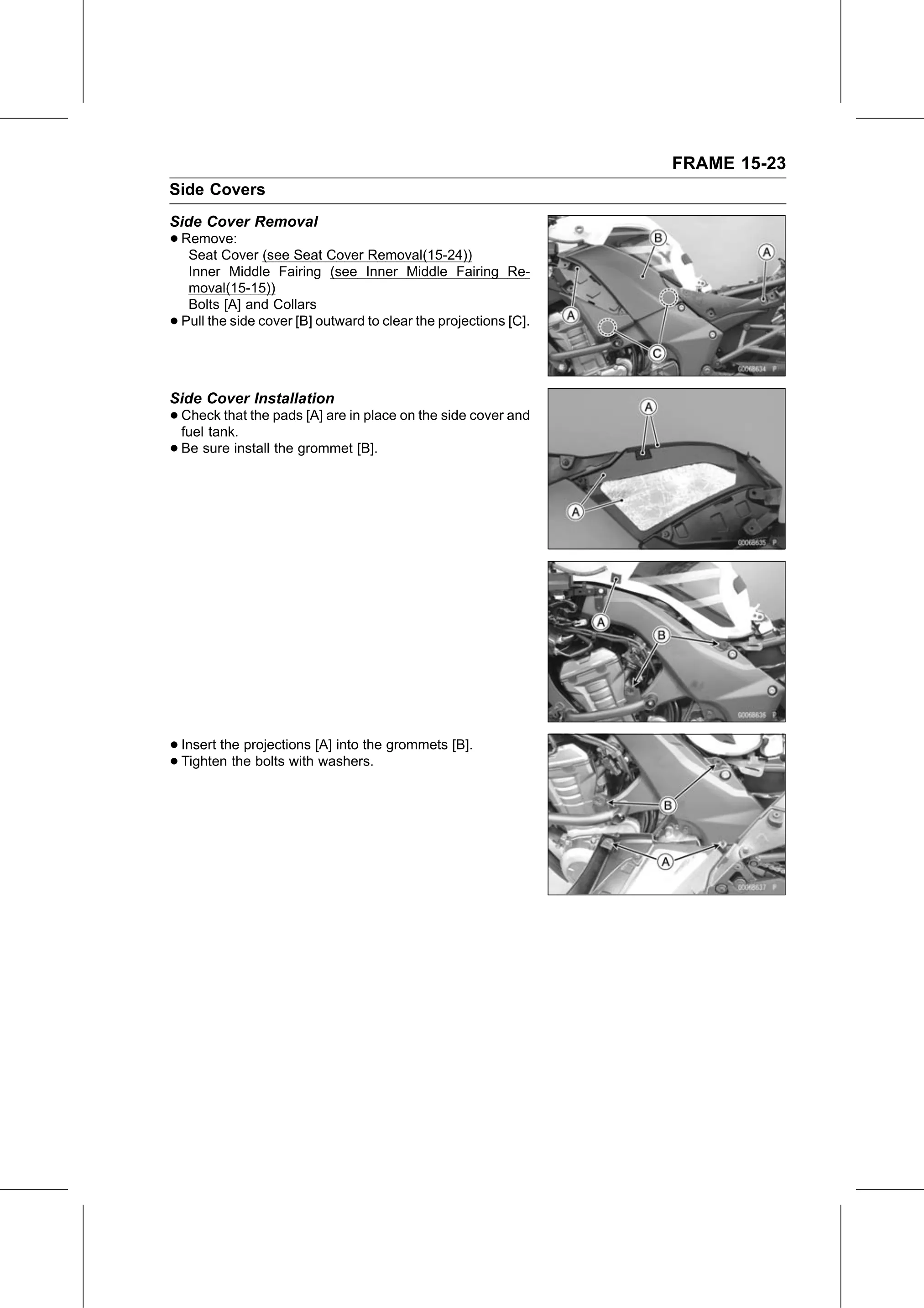

FRAME 15-23
Side Covers
Side Cover Removal
• Remove:
   Seat Cover (see Seat Cover Removal(15-24))
     Inner Middle Fairing (see Inner Middle Fairing Re-
     moval(15-15))
     Bolts [A] and Collars
•   Pull the side cover [B] outward to clear the projections [C].

Side Cover Installation
• Check  that the pads [A] are in place on the side cover and
  fuel tank.
• Be sure install the grommet [B].

• Insert the projections [A] into the grommets [B].
• Tighten the bolts with washers.
