17-44 SELF-DIAGNOSIS SYSTEM
Rear Wheel Rotation Sensor Signal (Service Code 24) (DTC P2158)

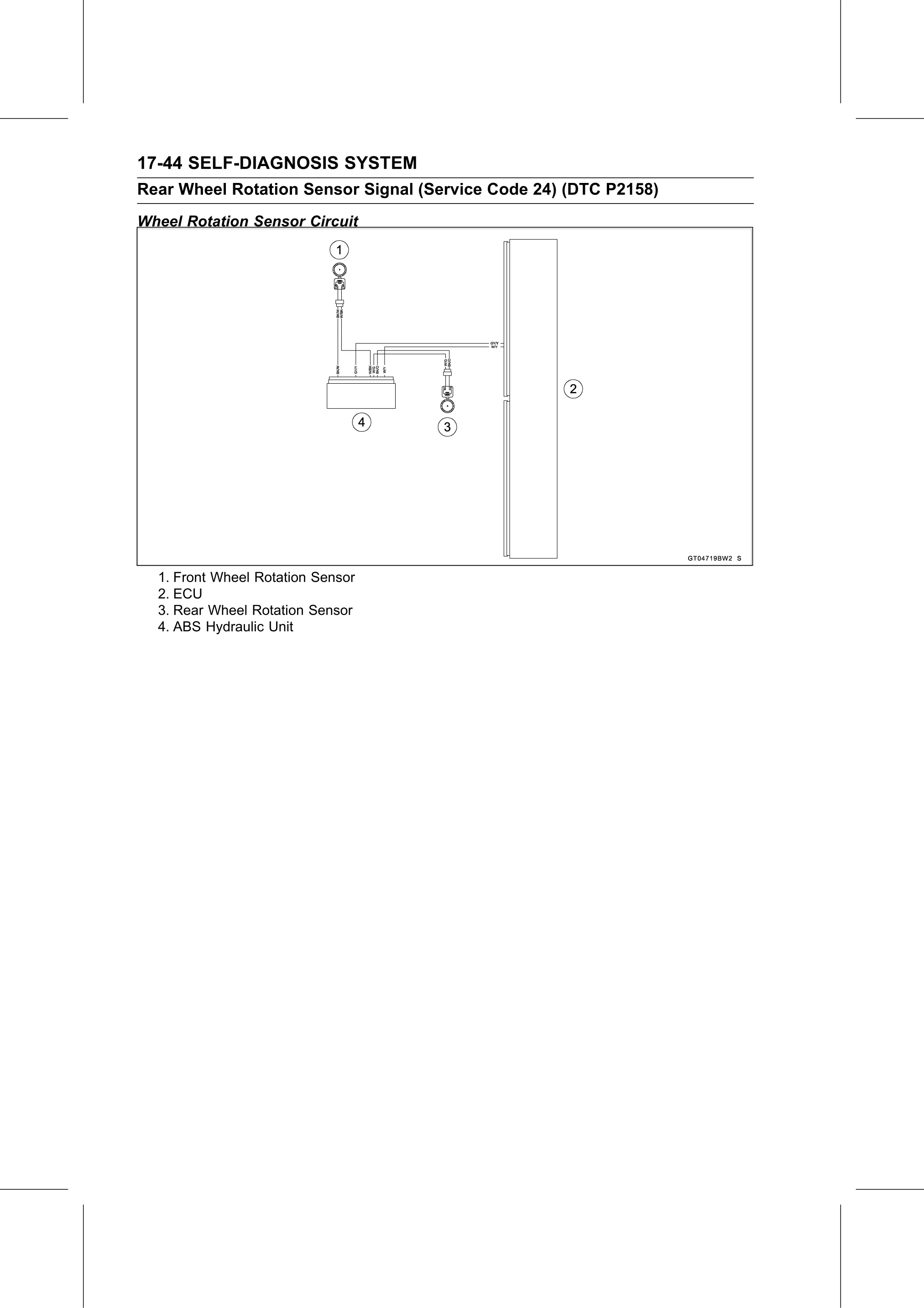

Wheel Rotation Sensor Circuit

  1. Front Wheel Rotation Sensor
  2. ECU
  3. Rear Wheel Rotation Sensor
  4. ABS Hydraulic Unit
