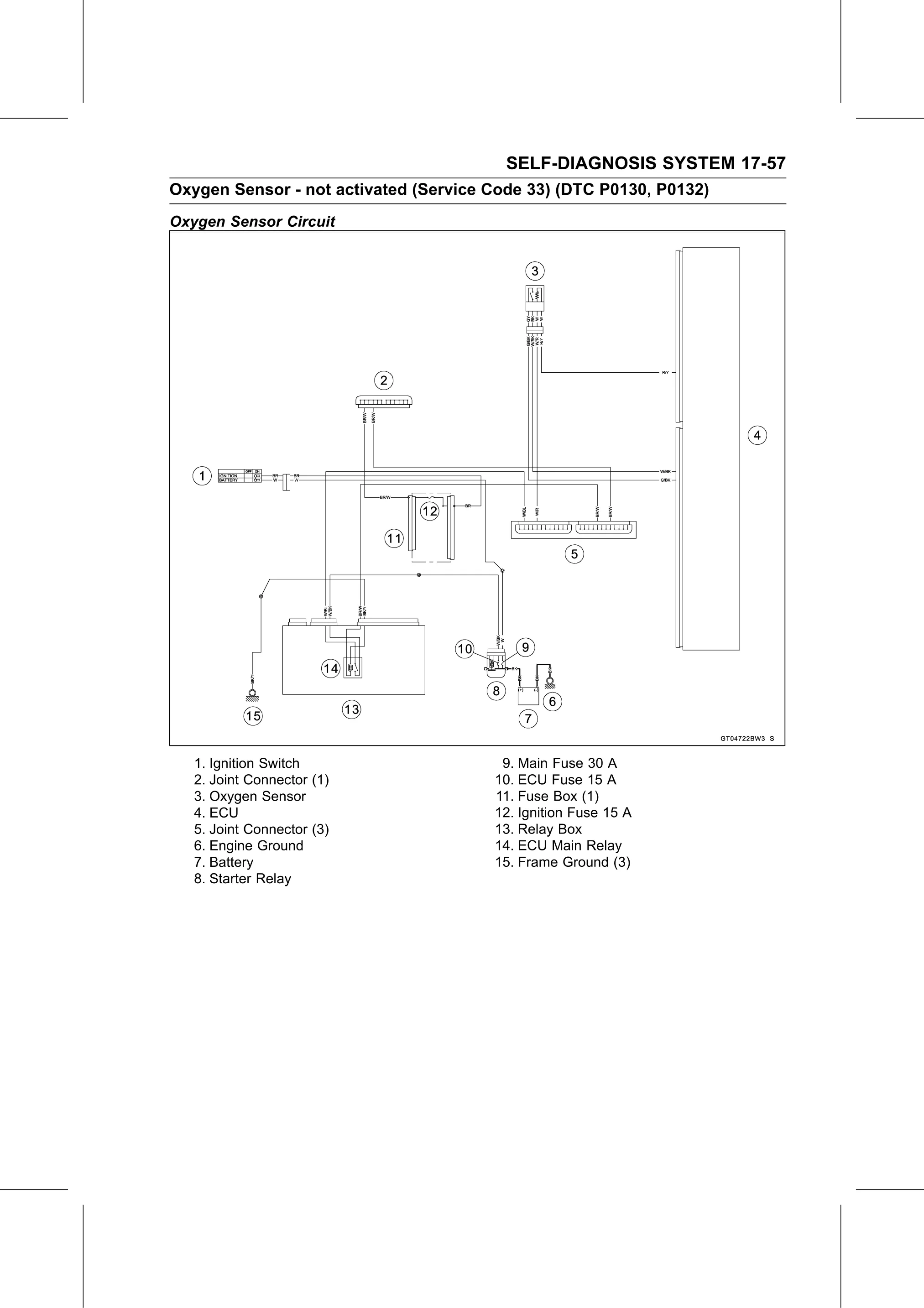

SELF-DIAGNOSIS SYSTEM 17-57
Oxygen Sensor - not activated (Service Code 33) (DTC P0130, P0132)
Oxygen Sensor Circuit

   1. Ignition Switch                   9. Main Fuse 30 A
   2. Joint Connector (1)              10. ECU Fuse 15 A
   3. Oxygen Sensor                    11. Fuse Box (1)
   4. ECU                              12. Ignition Fuse 15 A
   5. Joint Connector (3)              13. Relay Box
   6. Engine Ground                    14. ECU Main Relay
   7. Battery                          15. Frame Ground (3)
   8. Starter Relay
