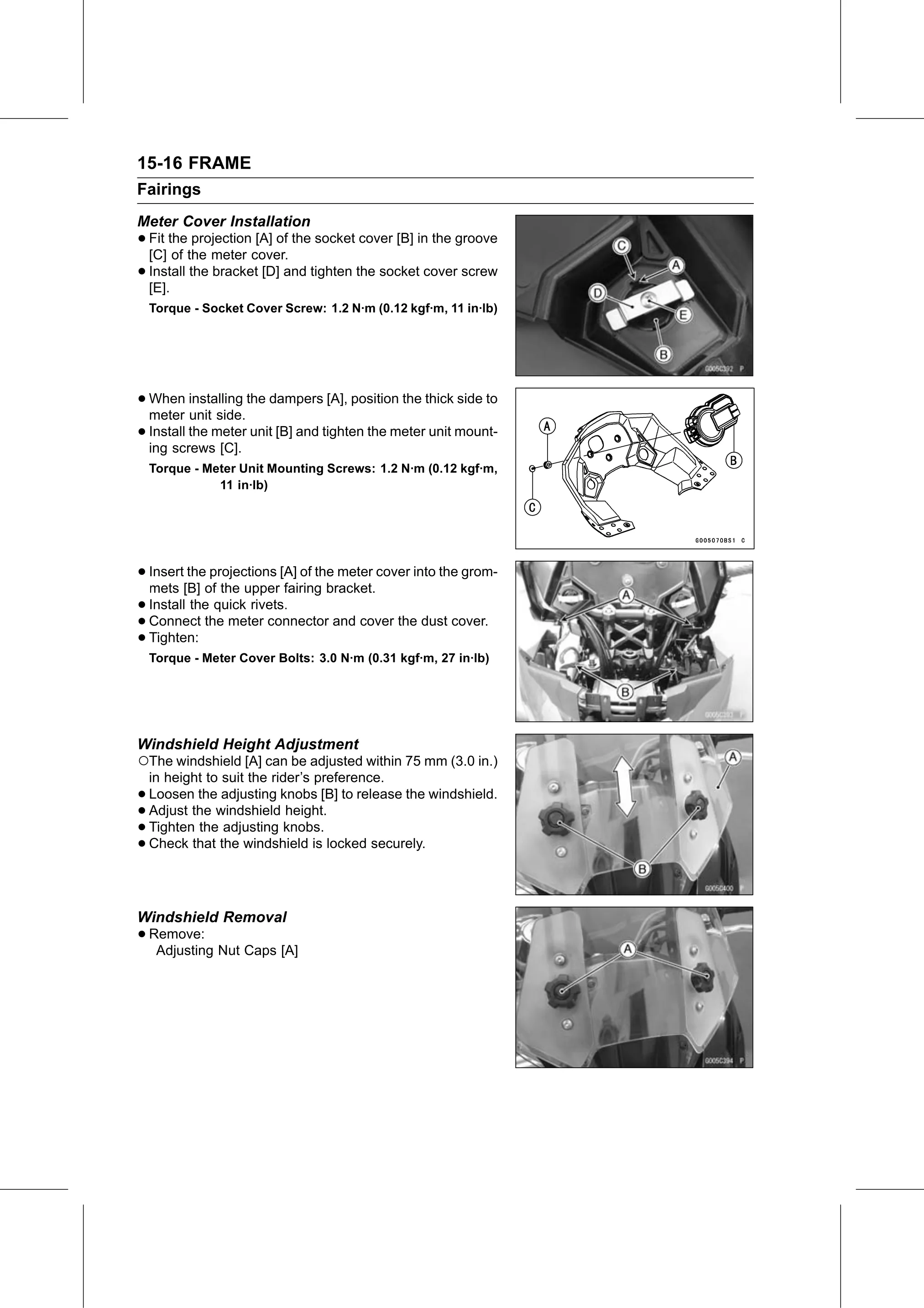

Service Manual — page 544 of 715

Text on this page

15-16 FRAME
Fairings
Meter Cover Installation
• Fit the projection [A] of the socket cover [B] in the groove
  [C] of the meter cover.
• Install
  [E].
          the bracket [D] and tighten the socket cover screw

    Torque - Socket Cover Screw: 1.2 N·m (0.12 kgf·m, 11 in·lb)

• When    installing the dampers [A], position the thick side to
  meter unit side.
• Install the meter unit [B] and tighten the meter unit mount-
  ing screws [C].
    Torque - Meter Unit Mounting Screws: 1.2 N·m (0.12 kgf·m,
               11 in·lb)

• Insert  the projections [A] of the meter cover into the grom-
  mets [B] of the upper fairing bracket.
• Install  the quick rivets.
• Tighten: the meter connector and cover the dust cover.
  Connect
•
    Torque - Meter Cover Bolts: 3.0 N·m (0.31 kgf·m, 27 in·lb)

Windshield Height Adjustment
○The windshield [A] can be adjusted within 75 mm (3.0 in.)
    in height to suit the rider’s preference.
•   Loosen the adjusting knobs [B] to release the windshield.
•   Adjust the windshield height.
•   Tighten the adjusting knobs.
•   Check that the windshield is locked securely.

Windshield Removal
• Remove:
   Adjusting Nut Caps [A]
